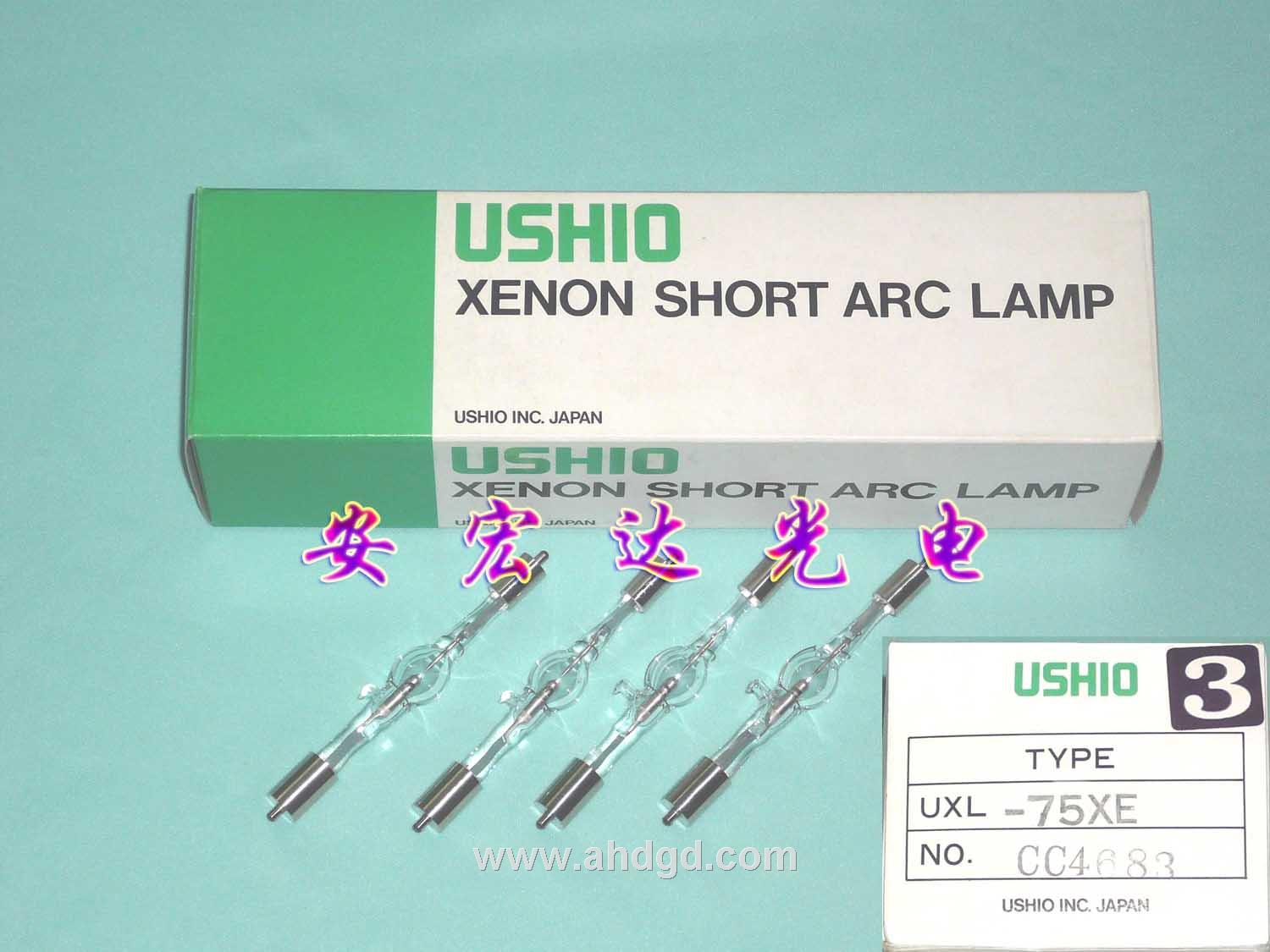

product group: xenon short arc lamps
ushio xenon short arc lamps are high-intensity point light sources. an important feature of this lamp type is its close resemblance to daylight in terms of spectral distribution. therefore they are often used in analysers on inspection tools as well as for solar simulation. due to the bright white light, commercial cinema projectors including digital ones use xenon short arc discharge lamps in general. besides they are used for special effect lighting such as for sky-trackers. ushio's uxl series are available in a power range from 75w to 10,000w.
product details：
product group
xenon short arc lamps
lifetime (hours)
1000
application
scientific / measurement
ozone free
yes
ushio code
uxl-75xe
dimension l1 (mm)
88
voltage (v)
12.5
dimension l2 (mm)
80
wattage (w)
65
dimension l3 (mm)
36.5
rated current (a)
5.4
dimension d1 (mm)
13
current range (a)
4.6
dimension d3 (mm)
2.5
initial lumens (lm)
dimension d4 (mm)
initial luminous intensity (cd)
100
electrode gap length (mm)
0.8
另外，安宏达光电公司还常年供应的各种日本进口uv灯，汞氙灯，点光源，水银氙灯，紫外线硬化装置用灯等特种光源有：
1．ushio:ush-250d;ush-250by;ush-255by; uxm-q256by; ush-200dp;uxl-s150mo；uxl-1500m2-n1;uxl-500sx
2．滨松hamamatsu: l6721; l6722;l10862；l8251;l8252;l10852；l2195.
3．松下nais: anups204; anups252.
4．hoya-schott: 250dl,250af,200mx
